Mechanical engineering portfolio · 2026

MECHANICAL ENGINEER · DESIGNER · MAKER

I DESIGN IT.
THEN I MAKE IT WORK.

CAD, additive manufacturing, electronics, and hands-on engineering—carried from an initial concept through fabrication, testing, failure, and refinement.

Explore selected work ↘About me →

◇CAD + DRAWINGS3D PRINTING</>EMBEDDED SYSTEMS⌁TEST + ANALYSIS

FEATURED CASE STUDY / 01 MOVE TO INSPECT

Studio render of my AeroVolt wind turbine prototype

MECH 220 · SPRING 2026AEROVOLT WIND TURBINE

01Class rankAeroVolt performance

4.234 mWPeak outputMeasured electrical power

3×Performance gapNearly the next-best turbine

40+Gear iterationsSureShift development

PORTFOLIO INDEX / CHOOSE A PATH

EXPLORE BY
ENGINEERING MODE.

01Mechanical

AeroVolt

Energy · CAD · Testing

1st in class · 4.234 mW↘

02Mechanical

SureShift

Mechanisms · Drawings

5 gears · 40+ iterations↘

03Embedded

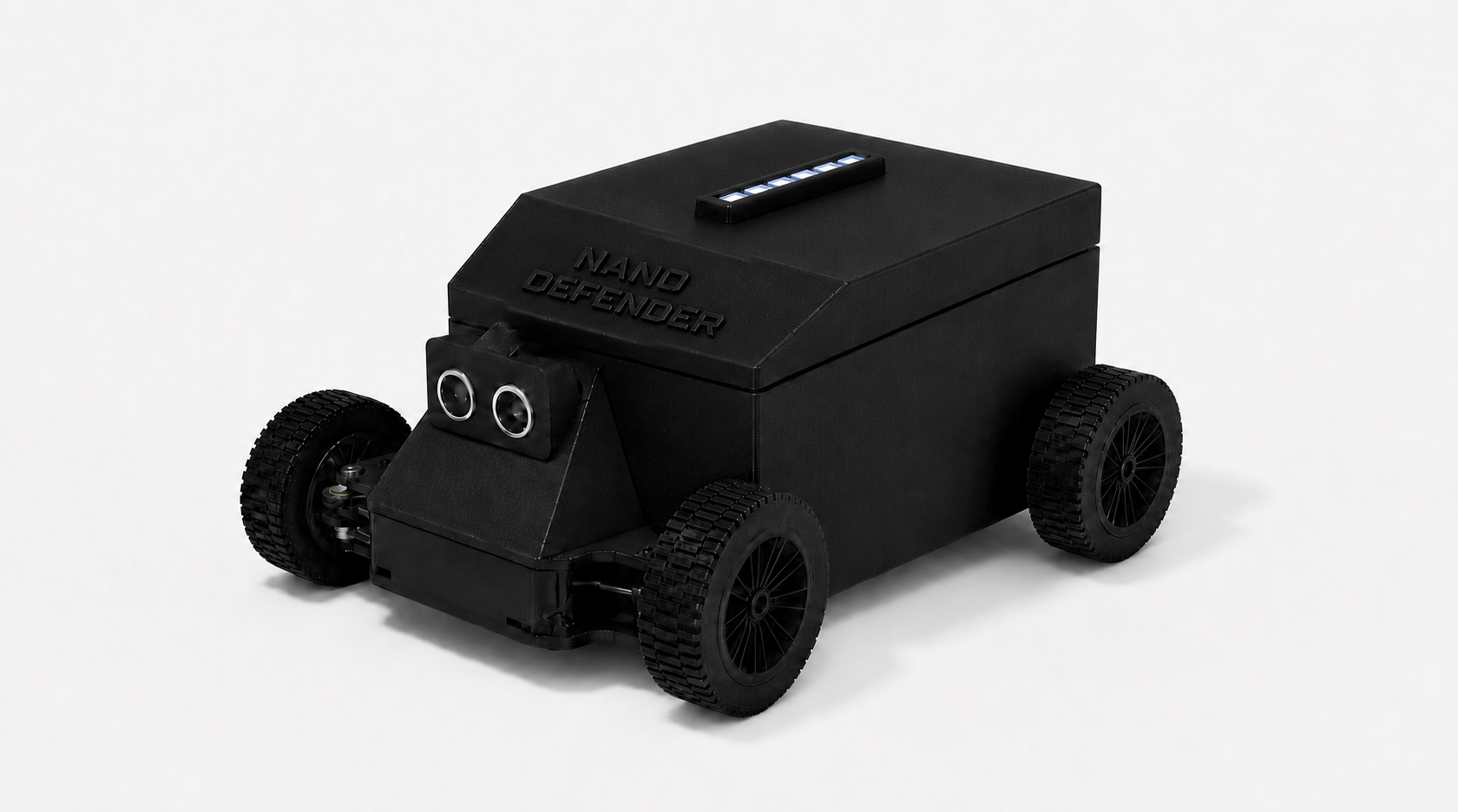

NANO DEFENDER

Arduino · Sensors · BLE

Integrated mobile robot↘

04Product

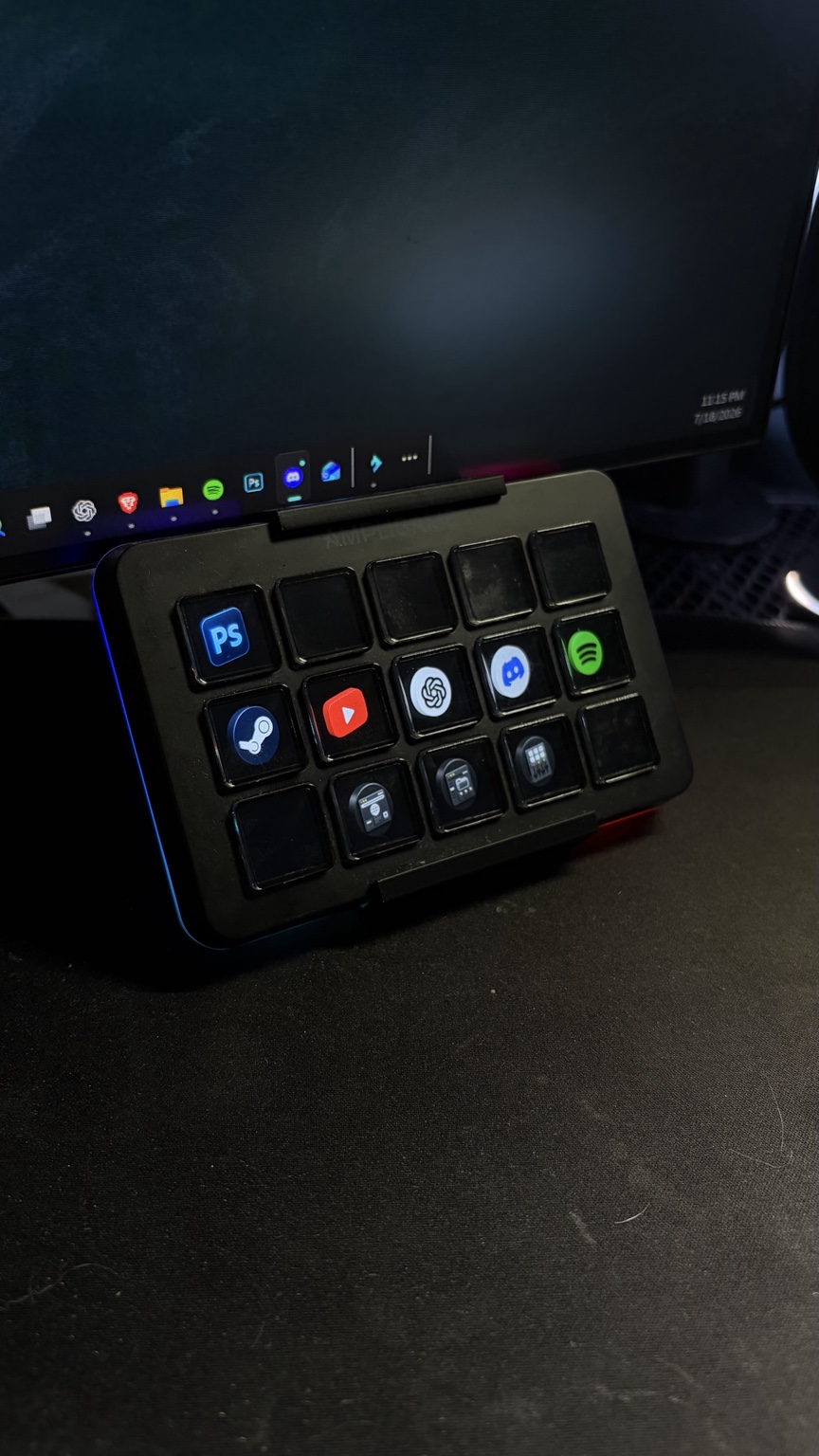

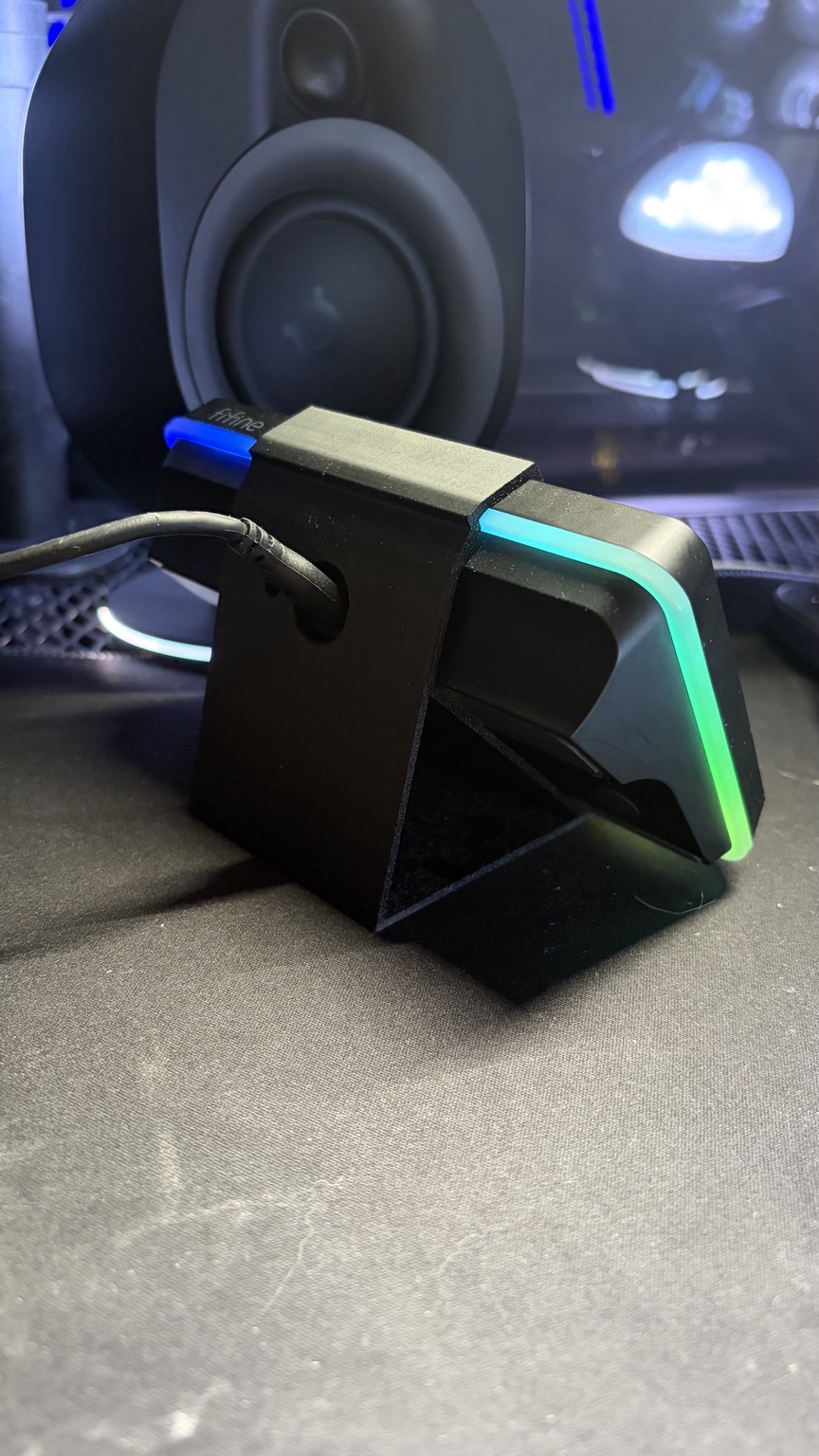

FIFINE D6 Stand

Fit · Ergonomics · FDM

Printed + workstation tested↘

05Product

Quntis Dock Family

Variant design · FDM

2 print-validated variants↘

06Product

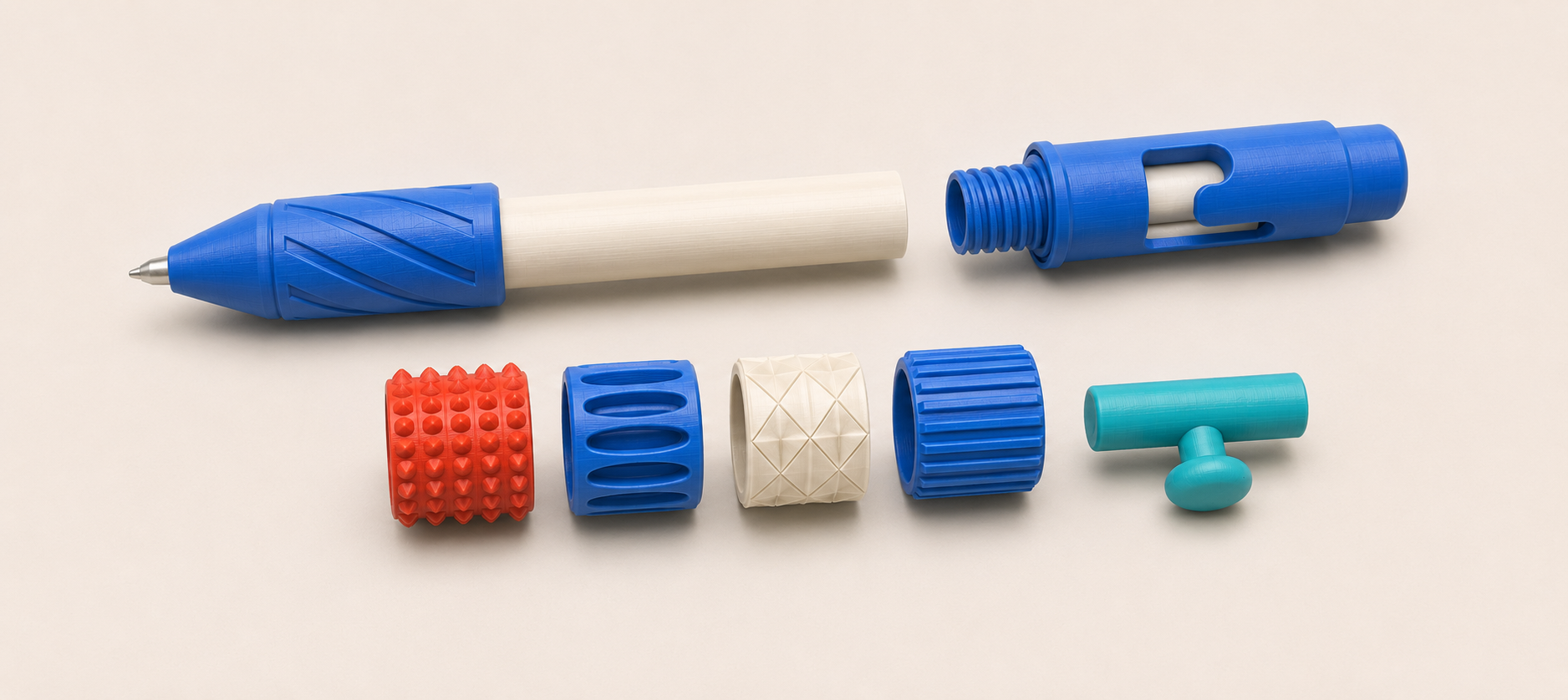

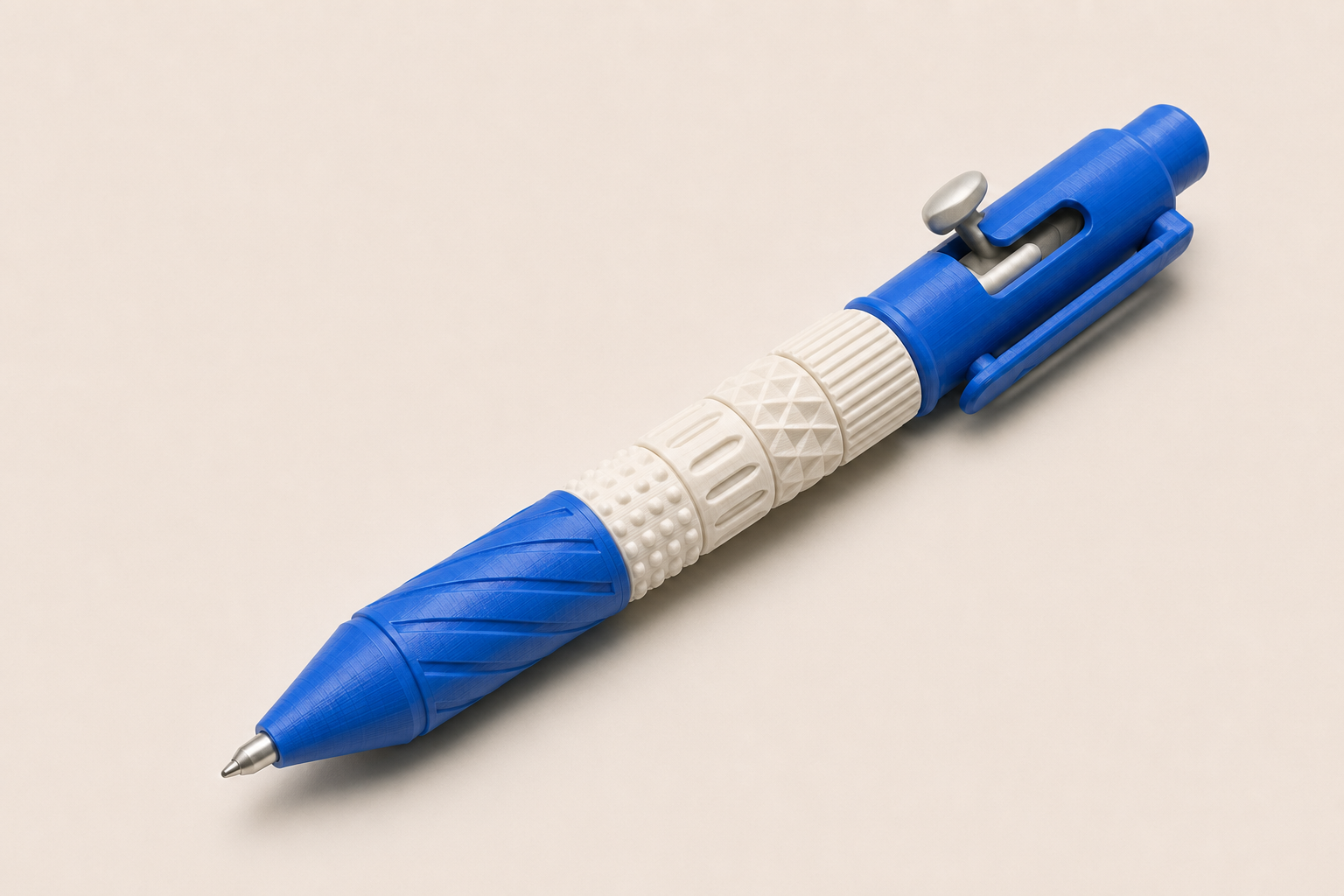

Pilot G2 Fidget Pen

Sensory design · Threads

4 tactile rings · serviceable↘

07Embedded

Desktop Companion

Firmware · Python · Product CAD

4 UI pages · 2-way serial↘

SELECTED WORK / EVIDENCE FIRST

A FAILED DRIVE SYSTEM.
A BETTER FINAL DESIGN.

AeroVolt began as a belt-driven horizontal-axis turbine. Excess friction consumed the available torque, while reducing belt tension enough to free the system risked slip. With testing time running out, I converted the generator to direct drive and the team recorded the highest electrical output in the class.

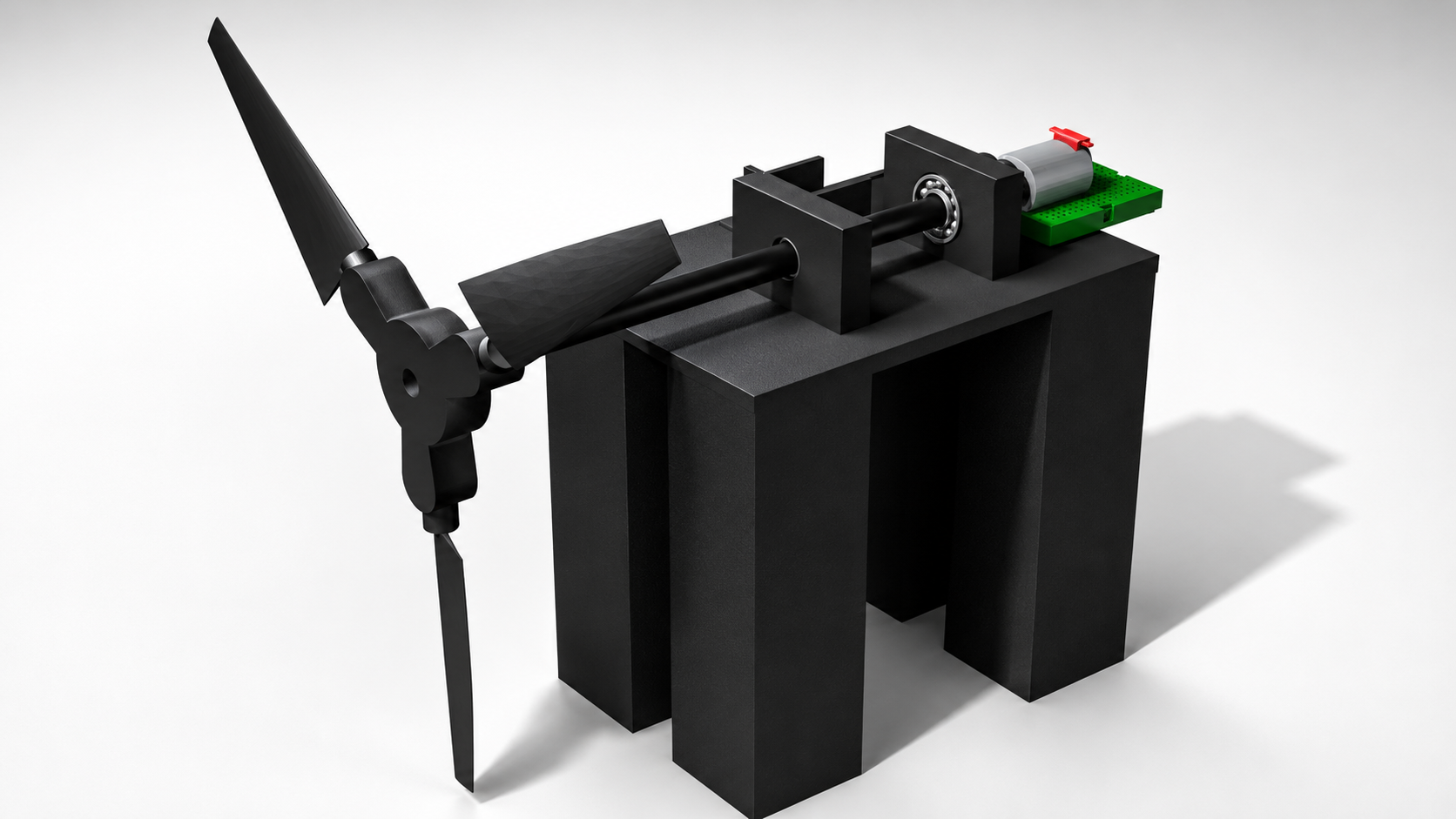

AeroVolt turbine assembly with 3D-printed structure, shaft, bearing and motor

ACTUAL CAD-BASED ASSEMBLY RENDER

Inspect the uploaded 3D assembly ↗

CASE STUDY / 01

AeroVolt Competitive Wind Turbine

I helped design and build this 3D-printed horizontal-axis wind turbine around a carbon-fiber shaft, sealed bearings, a 12 V DC motor, and NACA-inspired blade geometry.

◇CAD + DRAWINGS3D PRINTING⌁TEST + ANALYSIS

Outcome: 1st in class
Peak power: 4.234 mW
Electrical test: 0.224 V · 18.9 mA
Manufacturing: FDM PLA + carbon fiber

01 / DESIGNCustom parts + drawings

02 / BUILDPrint, fit + assembly

03 / RECOVERYDirect-drive redesign

What I contributed +

I designed custom printed components and prepared engineering drawings.
I sliced, printed, assembled, and troubleshot the physical mechanism.
I supported purchasing, budgeting, calculations, planning, and documentation.
When the belt drive failed, I proposed and completed the direct-drive conversion within the remaining test window.

DESIGN DECISION LAB / INTERACTIVE

FROM ZERO OUTPUT
TO FIRST PLACE.

Switch between the original and final architectures to see the decision that changed the project outcome.

ROTOR

GENERATOR

FINAL ARCHITECTUREDirect drive

4.234 mWMEASURED PEAK OUTPUT

With testing time running out, I proposed and completed the inline generator conversion so the team could retest without the failed belt stage.

Validated redesign

SELECTED WORK / 02—07

REAL BUILDS.
REAL ITERATION.

Each project is presented at its honest stage: validated engineering work, finished functional products, or active development. No invented hardware and no stock projects.

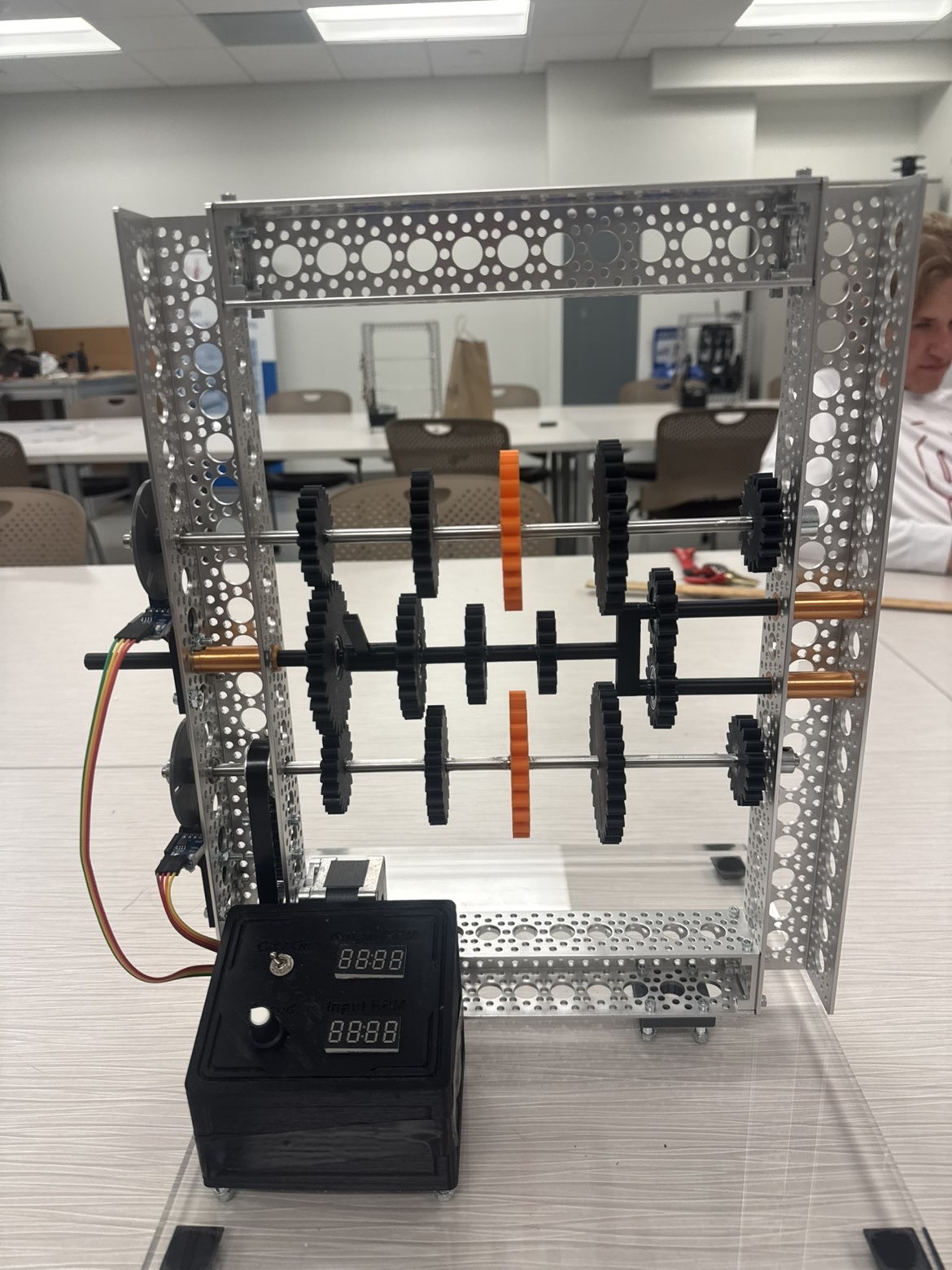

Completed SureShift five-speed transmission on its test stand — FINAL MECHANISM / NCC TEST STAND

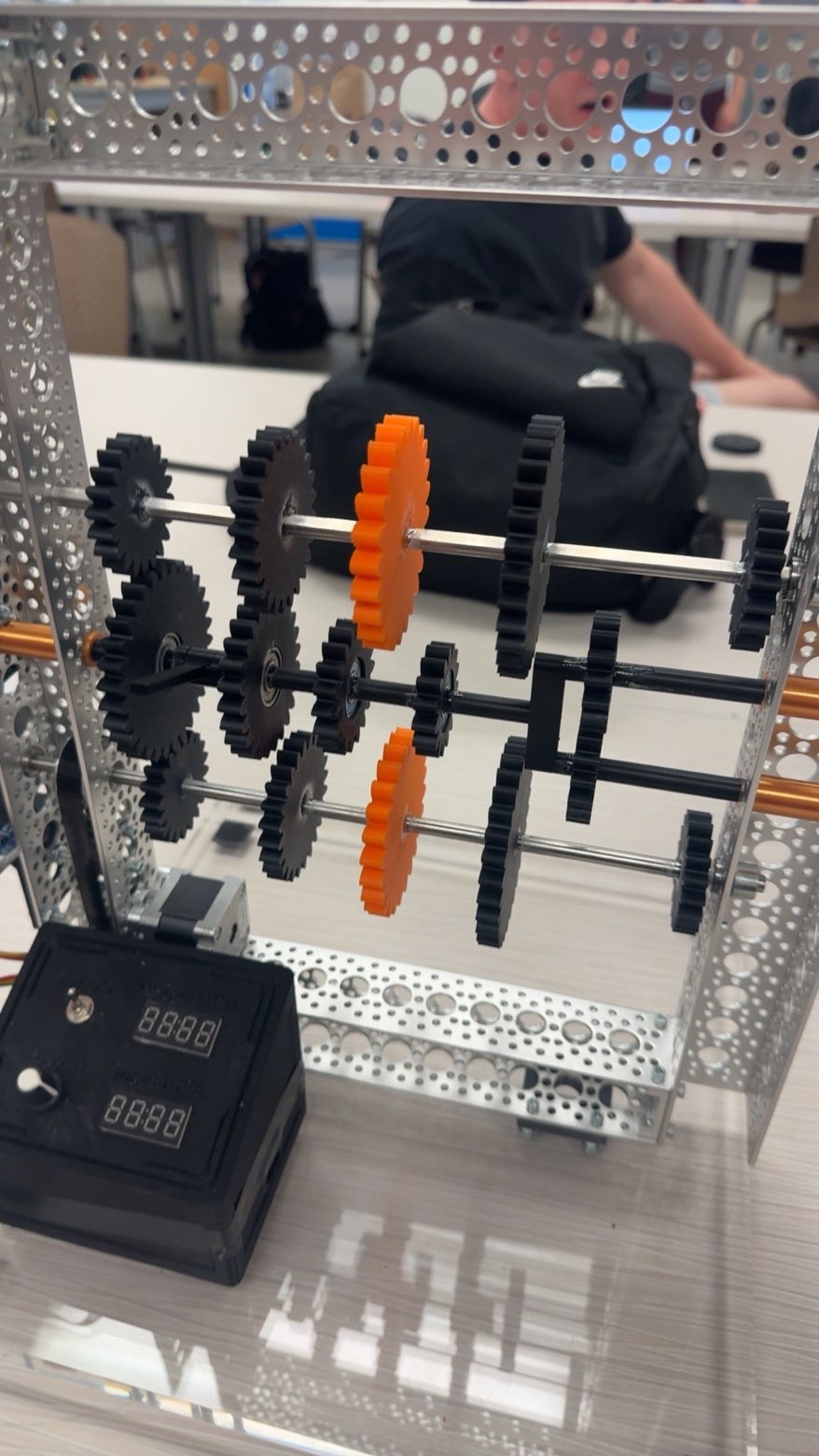

Close view of SureShift printed gears and shaft layout — GEAR + SHAFT DETAIL

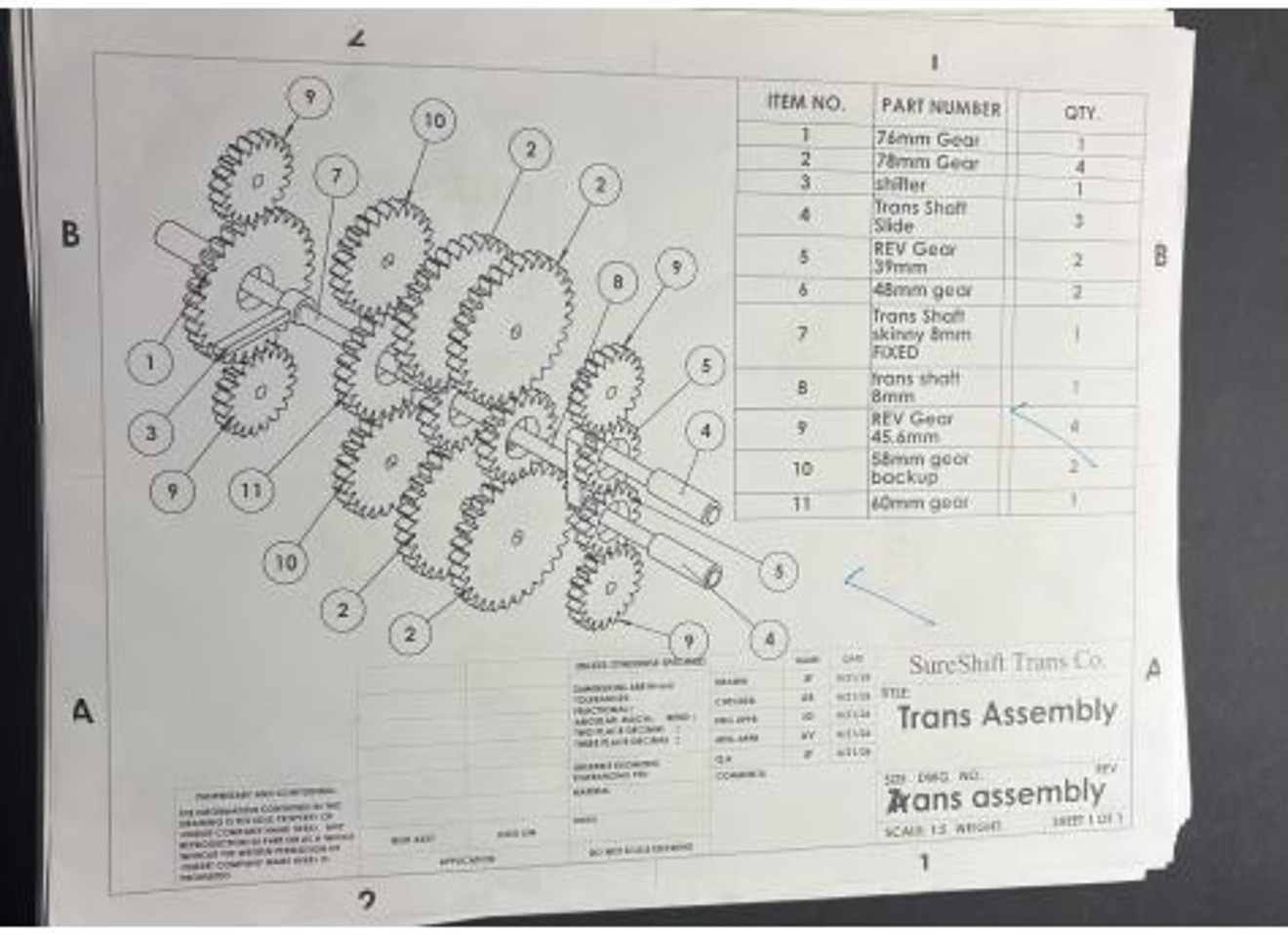

Upright, tightly cropped assembly drawing from my SureShift engineering drawing package — ASSEMBLY DRAWING / 18-PAGE PACKAGE

CASE STUDY / 02 · MECH 220

SureShift Five-Speed Transmission

I co-designed four forward ratios and reverse for an NCC test stand, using printed PLA gears, stainless shafts, bearings, and a forked shifting architecture.

5Gears · 4 forward + reverse

100%Mechanism grade

40+Gear iterations

80–85.7%Torque efficiency

Engineering breakdown +

Contribution

I authored every drawing in the 18-page packet and co-designed the gears and shaft spacing.

Build

I co-led printing, assembly, alignment, fitting, and late-night troubleshooting.

Result

My team was one of two to earn full mechanism credit after extensive print and fit iteration.

INTERACTIVE / BUILT RATIO EXPLORERACTUAL 3-SHAFT POWER PATH

SHIFT POSITION1 / 1ST

Selected ratio4 : 1

Ideal output300 rpm

DirectionForward

Prototype efficiency85.00%

Input shaft speed 1,200 rpm

Final tested ratios: R 1:1 · 1st 4:1 · 2nd 2:1 · 3rd 1:2 · 4th 1:4. The schematic preserves the vertically stacked bottom input → sliding middle selector → top output architecture, with tangent pitch contact in every position. Reverse uses the forked carrier and two intermediate gears on separate prongs. Prototype efficiency measured 80.00–85.71%.

VALIDATION FOOTAGE / 00:19SHIFTING MECHANISM IN MOTION

Vertical phone footage is presented inside a dedicated test frame so the full mechanism remains visible without stretching or cropping the original recording.

ACTIVE DOCUMENTATION

FRONT 3/4 · SENSOR + STEERING

03ROBOTICS · EMBEDDED SYSTEMS
